COB vs SMD LED: Which Package Fits Your Product Line?

2026-09-10 · 8 min read · Comparison

The short answer

Specify COB (chip-on-board) where the fixture aims light: track spots, deep anti-glare downlights, retail accent lighting and any product sold on a clean, single-source beam. Specify SMD (surface-mounted diodes) where light is diffused, spread across a board or built into flexible formats: strips, panels, bulbs, battens and most cost-driven general lighting. For a distributor or OEM, this is not a brand-loyalty question — the winning catalogs carry both packages and assign them deliberately by SKU. If your line leans toward directional commercial lighting, the allocation below will look familiar; if it leans decorative, the same logic applies in reverse.

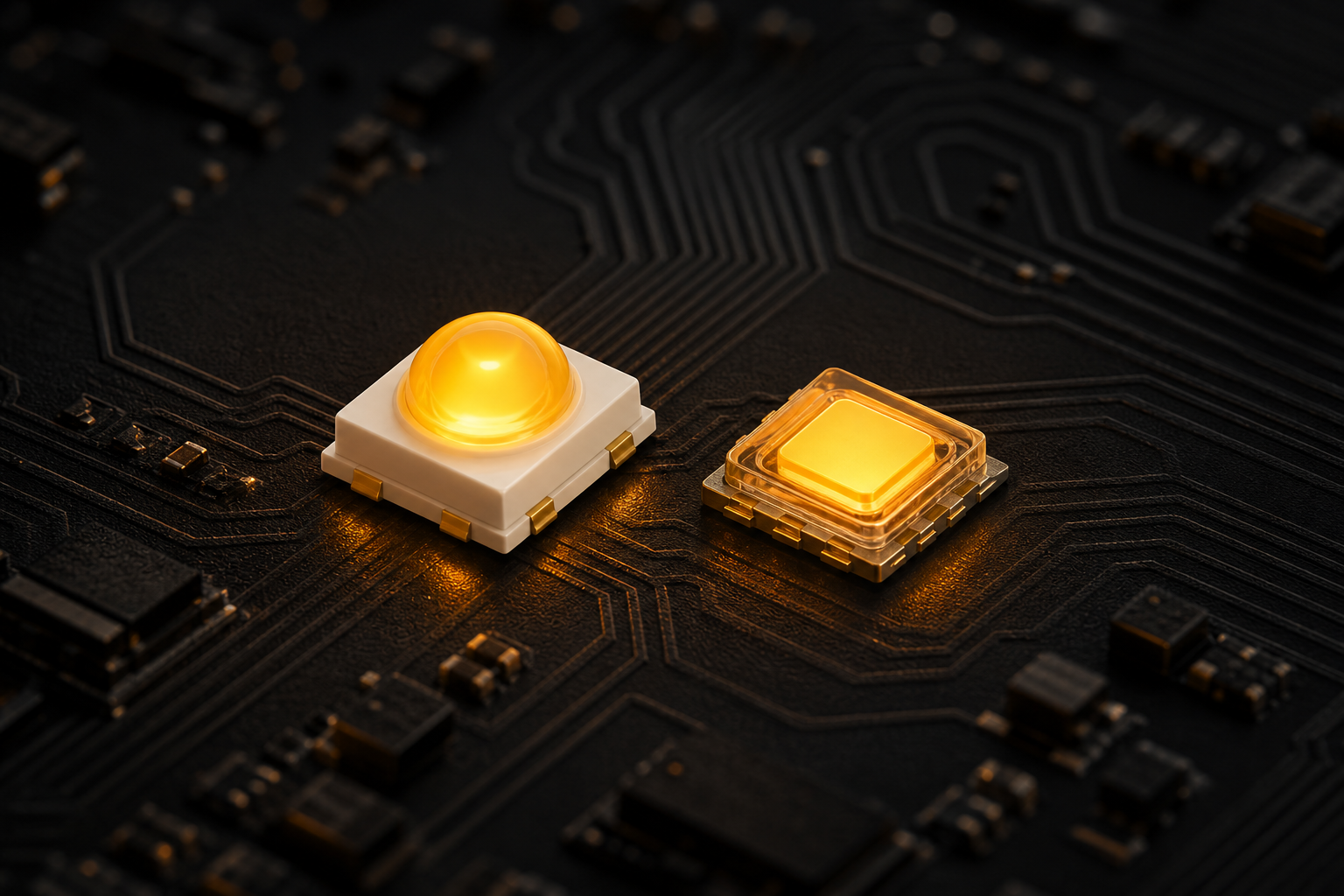

What the two packages actually are

SMD — surface-mount device — is the familiar approach: many discrete LED packages, each a few tenths of a watt, soldered in rows across a PCB. Each diode is its own light source with its own lens effect, so a lit SMD board reads as a row of bright points. The format is mature, cheap per lumen and endlessly flexible in layout, which is why it dominates strips, panels and everyday lamps.

COB — chip-on-board — bonds many bare LED dies directly onto one substrate and covers them with a single phosphor layer. The result behaves optically as one large, uniform light-emitting surface with no individual points. That single-source property is the entire commercial argument for COB: reflectors and lenses can shape it into a crisp, controlled beam without multiple shadows or ring artifacts.

Light quality and optics: where COB earns its price

Point a diffuser-less SMD floodlight at a wall and you will see overlapping shadows from every diode; point a COB spot and you get one clean shadow. In retail and gallery applications this is not cosmetic — accent lighting lives on shadow definition, and merchandisers reject multi-shadow fixtures quickly. COB also pairs naturally with deep recessed reflectors: because the source is compact and uniform, the reflector can cut glare hard (the low-UGR look buyers associate with quality downlights) while keeping high center-beam intensity.

SMD answers with diffusion. Behind a milky diffuser — panels, troffers, pendant lamps — the point-by-point structure disappears entirely, and SMD's cheaper board achieves the same visual result as COB at a lower bill of materials. The rule of thumb: if the fixture shows its light source directly or shapes it with a reflector, COB justifies itself; if a diffuser hides the source, SMD usually wins the cost comparison.

Thermal path, efficacy and lifetime

Both packages convert most of their input to heat, and both live or die by how that heat leaves the junction. COB concentrates thermal load on one substrate, so its performance ceiling is set by the quality of the board, the interface to the heatsink and the drive current the factory chooses. A well-built COB spot holds excellent lumen maintenance; a cost-cut one runs hot and yellows its phosphor early. SMD spreads the same power across many points on a larger board, which is thermally forgiving — one reason SMD-based high-bay and flood products dominate the volume market.

On efficacy, volume-grade product of either package now sits in overlapping bands — roughly 120-200 lm/W depending on tier and drive current (illustrative ranges; verify per datasheet). Claims that "COB is more efficient" or "SMD runs cooler" as blanket statements are marketing residue. What matters in procurement is the assembled fixture's tested output and temperature, not the package label.

Driver pairing and dimming behaviour

The package choice reaches into the driver decision. A COB is a single electrical load, typically driven as one circuit at moderate current, so dimming behaviour is uniform across the source and low-level dimming tends to look smooth — one reason COB dominates hospitality and retail spots where scenes run deep. SMD boards are usually built as multiple parallel strings, which spreads the electrical load but can make very low-end dimming step unevenly if the strings drop out at different points; quality board design and a matched driver keep this invisible, but it is a real failure mode in cheap product.

Flicker adds the same nuance. Neither package flickers by nature — the driver decides — but because COB fixtures are often specified for camera-facing environments such as retail video and hospitality content, their quotations tend to be held to flicker metrics (PstLM / SVM) earlier than SMD product, where the same requirement simply needs to be stated. So state it: write the flicker limits into both COB and SMD line items and the correct driver tier follows automatically.

Failure modes, QC and repair

The packages fail differently, and that shapes aftermarket economics. One failed SMD diode on a board produces a visible dark dot and can often be reworked in the field with basic tools; a failed COB usually means replacing the whole module, though module-level design (a socketed COB holder) turns that into a quick swap. For distributors, this argues for stocking SMD-based lines where field service is expected, and COB lines with modular holders where brand image is expected.

Quality control differs too. SMD production benefits from mature, highly automated lines with tight binning on flux and colour; the risk is visible binning steps between batches. COB concentrates quality into the phosphor process and bonding — the risks are colour shift over angle (yellow rings at the beam edge on cheap product) and delamination under poor thermal design. When auditing suppliers, ask SMD vendors for SDCM binning policy per batch, and COB vendors for colour-uniformity-over-angle data plus thermal measurements at the TC point. Both checks are standard for the partner factories we audit; certification paperwork for the destination market comes via certified partner factories, as outlined in the certification guide.

Comparison at a glance

How to choose: three rules

1. If the beam is the product, choose COB. Directional fixtures sold on glare control, shadow quality or accent punch — track and magnetic spots, deep downlights — repay the package premium.
2. If a diffuser hides the source, choose SMD. Panels, strips and diffused decorative lamps gain nothing visible from COB and lose on cost.
3. Assign by SKU, not by ideology. Audit each product's optics, service model and price point; most healthy lines run roughly 30-50 percent COB in directional SKUs (illustrative split) and SMD everywhere else.

Advice for OEM buyers and distributors

For private-label programs, the package decision usually follows the fixture families you already sell. Decorative and pendant collections lean SMD behind opal glass or fabric shades; shop-lighting and hospitality spot lines lean COB with interchangeable reflectors. When we quote a product line, we map the package per SKU in the offer itself — chip tier, binning policy, driver pairing and tested lm/W — so the comparison happens at product level, not brochure level.

Two procurement habits protect you regardless of package. First, demand aging samples: run quoted units 48-72 hours and re-measure flux and colour before the purchase order; package-level defects show up fast. Second, lock the binning and chip brand in the contract, not in a sample. Both are routine clauses in our OEM quotations, and both cost nothing to ask for. Send your product list with target price points and we will return a package-and-driver allocation per SKU with FOB pricing within 24 hours.
