UFO and linear high bay, tri-proof, canopy and explosion-proof fixtures for warehouses, factories, cold chains and forecourts — backed with IES/LDT photometric files and Dialux layouts for your tender file. Choose by mounting height, environment and duty cycle: round UFO optics for open floors, aisle optics for racking, sealed tri-proof lines for wet and cold zones. Built for retrofit contractors, EPCs and industrial distributors quoting tender-grade projects.
Industrial lines are matched to the building first, the budget second — tell us the hall, the racking and the ambient, and we return the shortlist with photometrics.

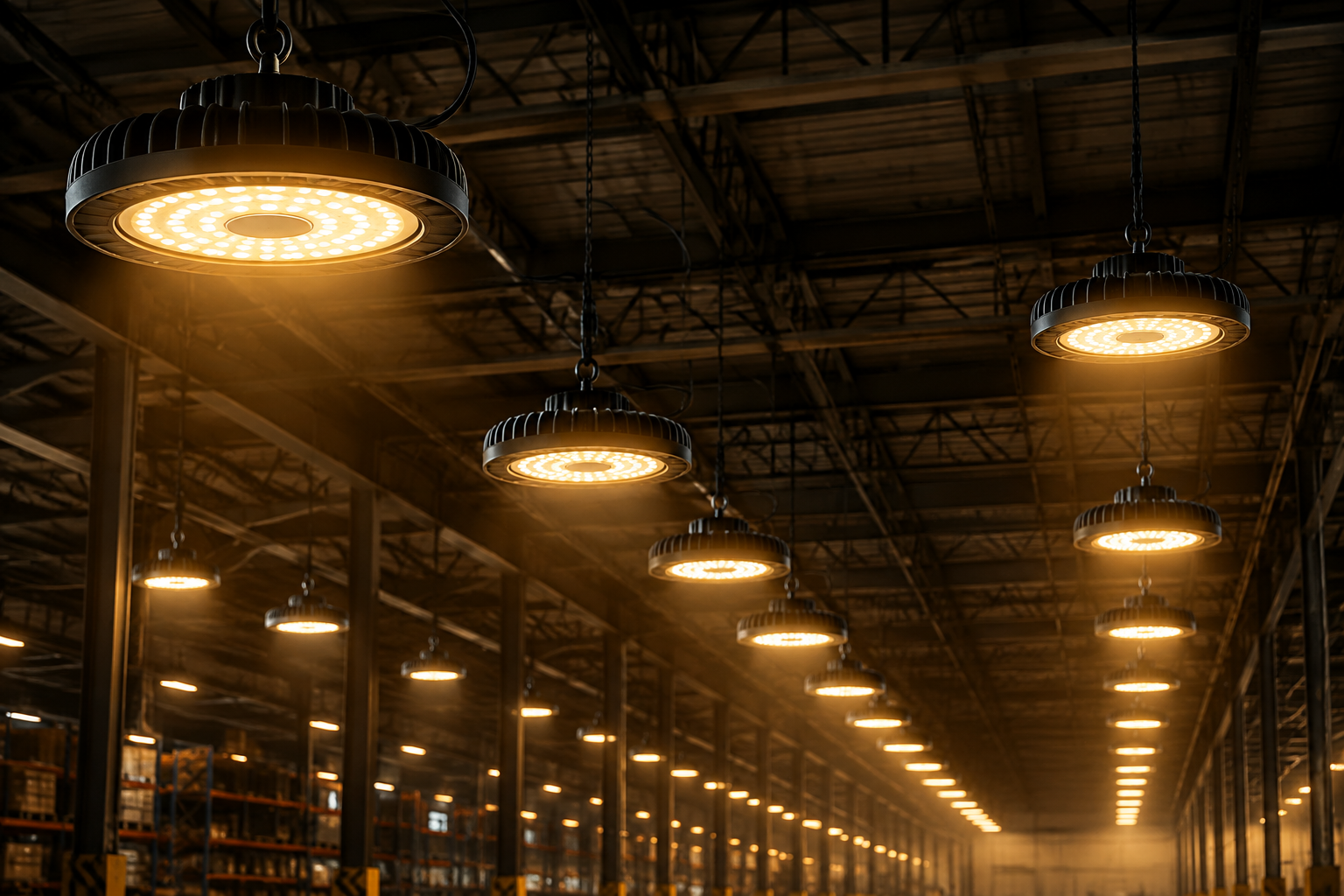

100-240 W die-cast rounds for production halls, logistics decks and sports halls. 1-10V / DALI, hanging and chain mounts.

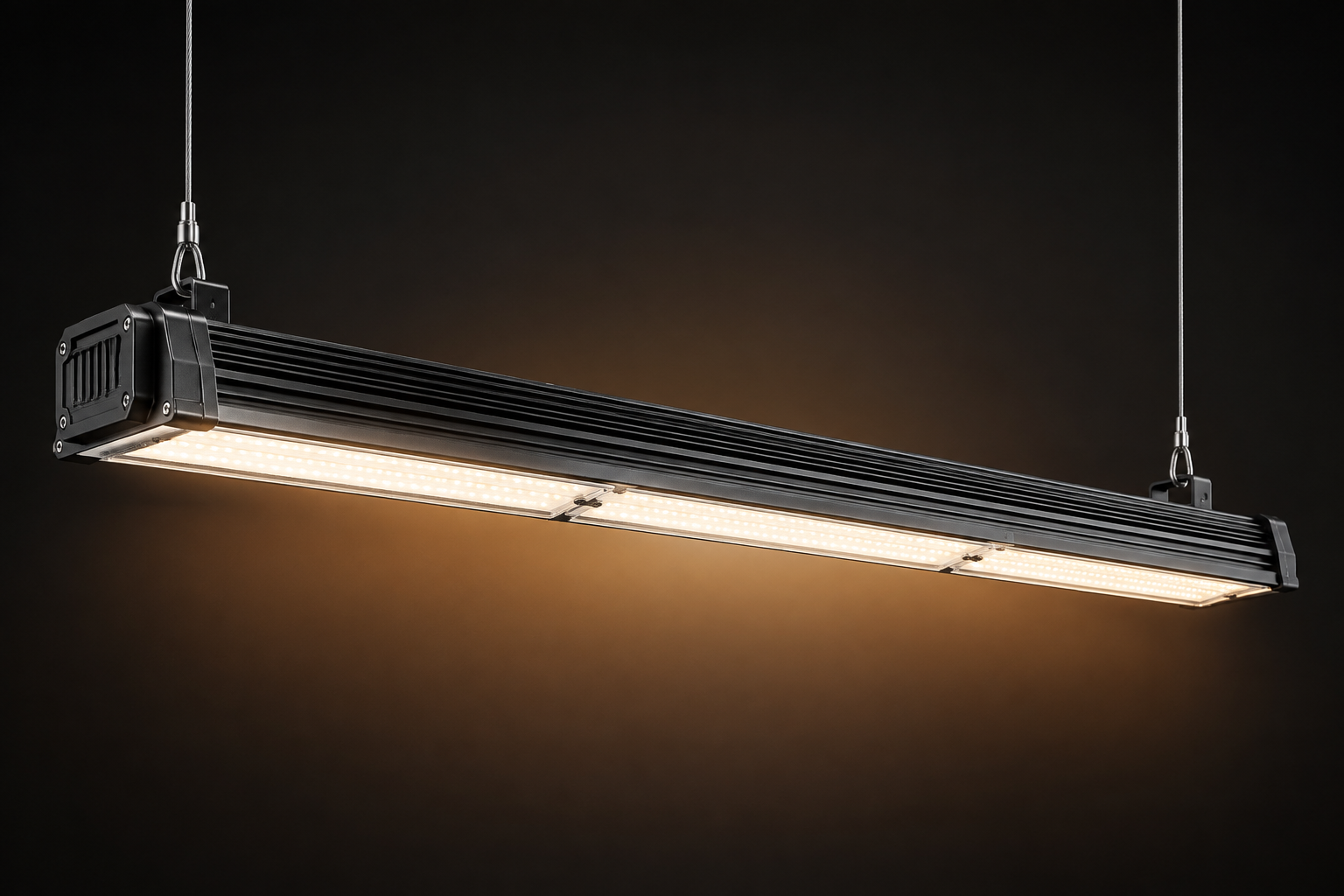

Aisle-friendly optics for narrow racking lines, mounted in continuous rows where round beams waste lumens.

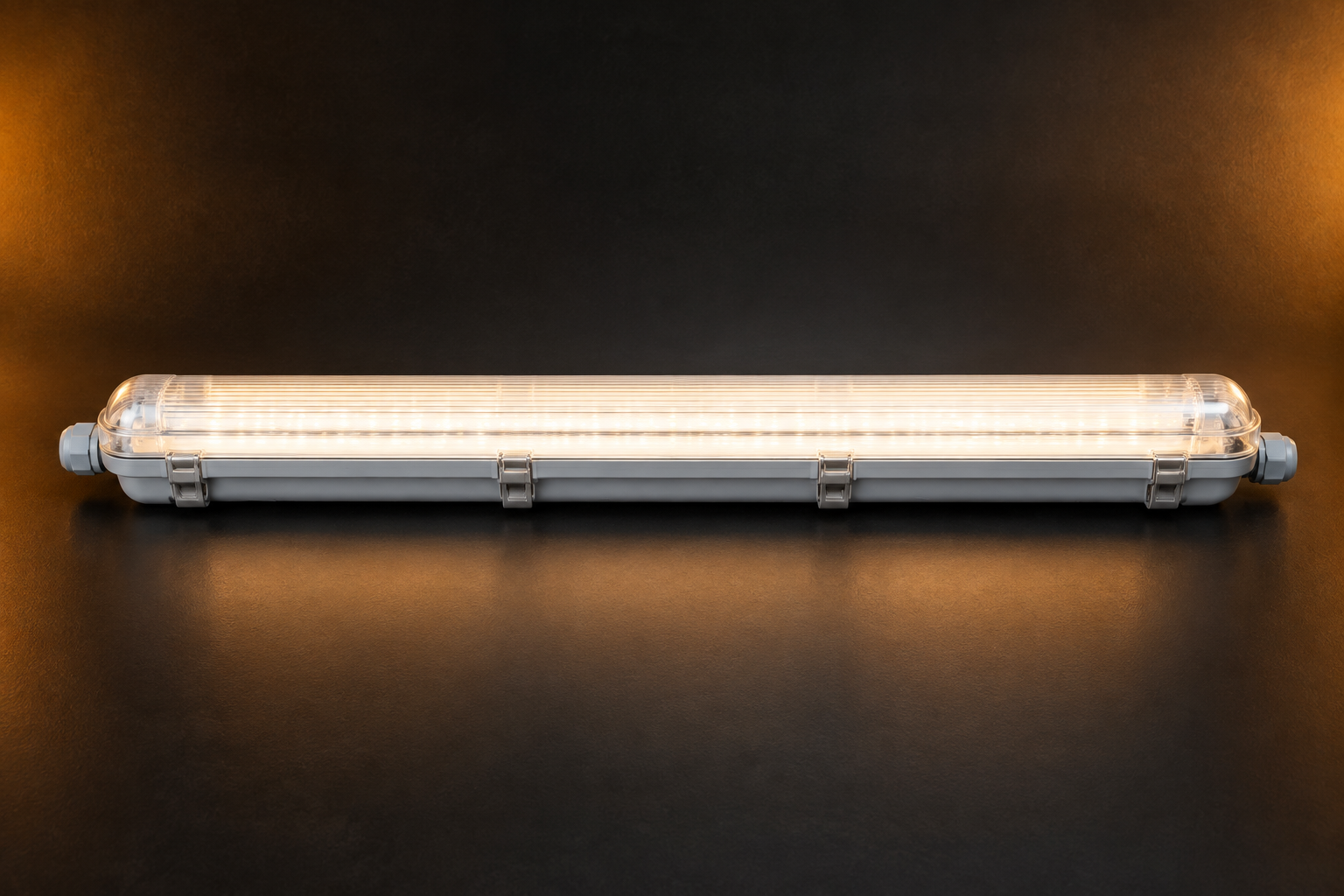

IP65-IP66 sealed lines for washdown areas, cold rooms and parking decks — connector-wired for row installation.
Forecourt and toll-station canopy fixtures with corrosion-coated housings and low-glare optics for wet night roads.
Hazardous-area fixtures handled only through certified partner factories — quoted per project, certificates verified per order.
PIR/microwave presence, daylight relay and self-test emergency packs to close out the specification.
| Model series | Power | Luminous flux | IP rating | Typical application | Order mode |
|---|---|---|---|---|---|
| HB-U UFO high bay | 100-240 W | 13,000-38,400 lm | IP65 | Warehouses, plants, sports halls | Trial 100-200 pcs / project qty |
| HB-L linear high bay | 100-200 W | 15,000-32,000 lm | IP65 | Narrow-aisle racking, workshops | Trial 100-200 pcs |
| TP-W tri-proof | 20-60 W | 2,600-8,400 lm | IP65 / IP66 | Parking decks, cold rooms, washdown | Bulk 500 pcs+ |
| CP-C canopy | 40-100 W | 5,600-16,000 lm | IP65 | Petrol forecourts, toll canopies | Project quotation |
| EX-A explosion-proof | 50-150 W | 7,000-22,500 lm | IP66 · Ex zones | Hazardous areas, paint shops | Project quotation via certified partners |
| SK sensor & emergency kits | Per fixture | Per fixture | IP65 | Presence control, self-test compliance | With fixture order |
Illustrative prototype figures — final MOQ and lead times are confirmed per order. Warranty 2-5 years by product line.
Representative lines from this category. The item-level catalog with photometric files and certification mapping is prepared per inquiry.
100-240 W · 14,000-38,000 lm · IP65 · 2-5 yr warranty (typical)
Order mode: Project / bulk quotation · request pricing
100-200 W · 15,000-30,000 lm · continuous rows at 3-8 m (typical)
Order mode: Project / bulk quotation · request pricing
20-60 W · 2,600-7,800 lm · IP65 IK08 sealed gear tray (typical)
Order mode: Bulk 500 pcs+ · request pricing
Illustrative prototype products and figures — confirmed against your market and certification needs at inquiry.
Start from the building, not the catalog: mounting height and environment narrow the field to one or two series.
| Specification tier | Best for | Recommended line |
|---|---|---|
| Standard hall tier — high-efficacy rounds with 1-10V / DALI dimming | Open production floors, logistics decks and sports halls at typical mounting heights | HB-U UFO high bay series, with SK sensor kits for aisle presence control |
| Aisle & environment tier — aisle optics or sealed IP65/IP66 housings | Narrow racking aisles, cold rooms, washdown areas and parking decks | HB-L linear high bay for racking; TP-W tri-proof series for wet, cold and dusty zones |
| Hazardous & forecourt tier — project-quoted through certified partners | Petrol forecourts, toll canopies, paint shops and classified Ex zones | CP-C canopy series and EX-A explosion-proof line, certificates verified per order |
Tier examples follow the series on this page — the final shortlist is returned with photometrics against your hall dimensions.
Industrial buyers lose money on paper specs that fail in the hall. We pin down driver brand, LED package and surge protection on the BOM before you commit, and verify IP and photometrics against test reports — not marketing sheets.
Certificates are held by certified partner factories and verified per order with number and official database link. North-American UL/ETL/DLC are quoted case-by-case. Detail in the certification center.
Round beams versus aisle optics — how racking layout decides the fixture before wattage does.
Mounting height, spacing ratios and lux math — the checklist behind a hall layout that passes review.
What the tri-proof name actually seals against, and where the format beats a high bay outright.
Tender documents or a floor sketch — IES files, Dialux layout and FOB quotation within 24 hours.
