48V low-voltage magnetic systems, 3-wire and 3-circuit track, and deep anti-glare optics — the ceiling system line behind retail, gallery and high-end office fit-outs, planned per reflected ceiling plan. Choose the rail standard your market uses first, then the optics: CRI90+ spots for merchandising, UGR<16 grille modules for screens and galleries, DALI-addressable heads for scene control. Built for retail chains, showroom fitters and lighting designers running system-scale rollouts.
Track is a system sale: the rail standard must match the market, the modules must match the merchandising. We quote both ends of that decision.
Recessed, surface and magnetic-suspended rails with tool-free snap-on spot, linear, grille and pendant modules.

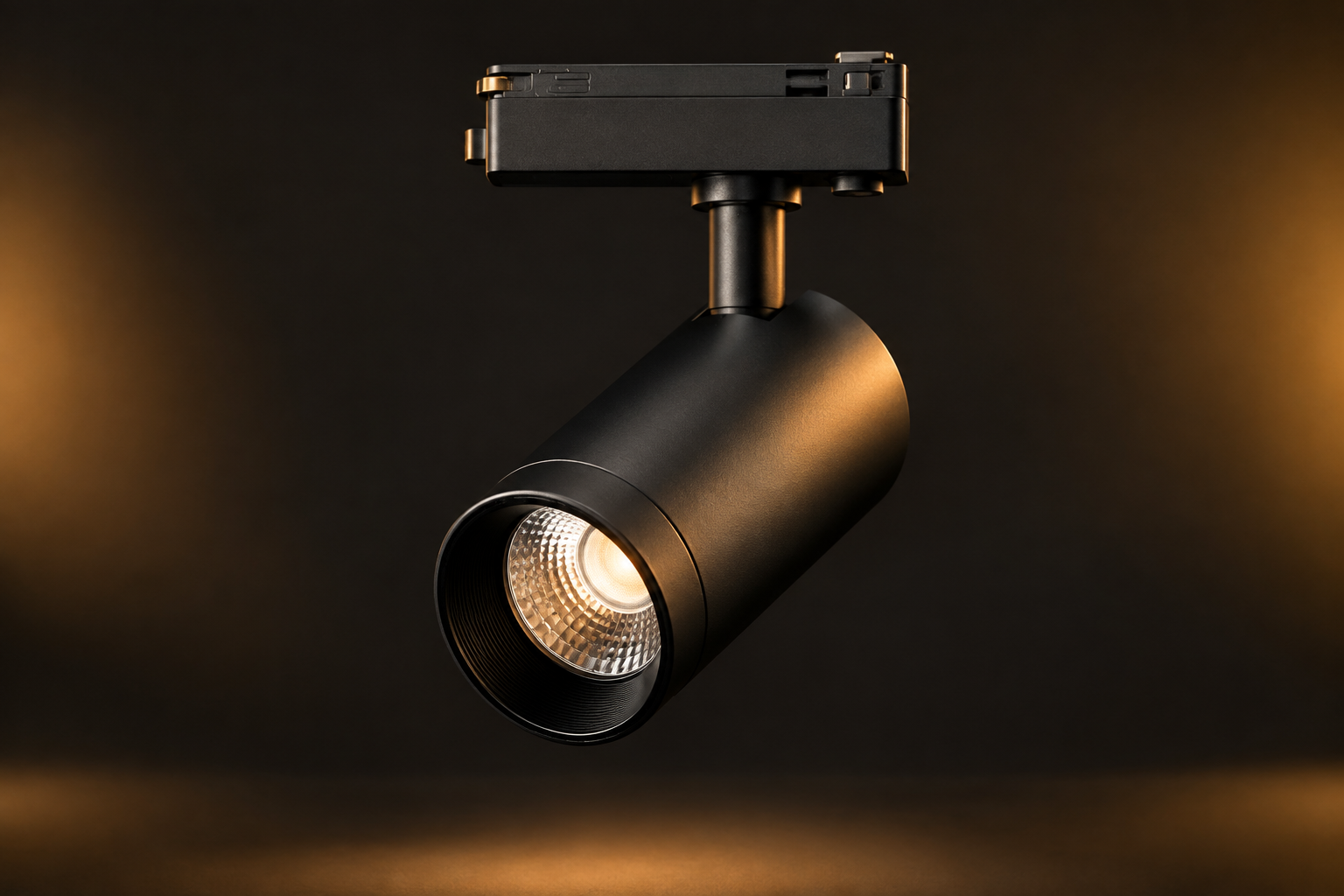

Single-circuit heads, 12-45 W, CRI90+ — the volume standard for showrooms and chain retail.
Four-wire three-circuit adapters for European switching schemes — independent scenes on one rail.
Honeycomb grille and deep-recess modules, UGR below 16 — offices, studios and screen-heavy retail.
CRI95 options, tight beams from 10 degrees, and color consistency held to 3-step SDCM across the batch.
Connectors, suspensions, DALI-addressable heads — and a layout drawn against your reflected ceiling plan.
| System | Track standard | Module power | Luminous flux | Optics / glare | Order mode |
|---|---|---|---|---|---|
| MGX 48V magnetic | 48V DC · recessed / surface / suspended | 8-24 W per module | 700-2,400 lm | UGR<16 grille · 15-60 degrees | Trial 100-200 pcs per system |
| T3 single-circuit | 220-240V · 3-wire | 12-45 W | 1,100-4,500 lm | 15-60 degrees · CRI90+ | Trial 100-200 pcs |
| T4 three-circuit | 220-240V · 4-wire | 12-60 W | 1,100-6,000 lm | 15-60 degrees · CRI90+ | Trial 100-200 pcs |
| GR grille / wall-washer | 48V DC magnetic | 12-30 W | 1,100-2,900 lm | UGR<16 · asymmetric option | With system order |
| DA DALI track sets | Addressable per head | 12-45 W | 1,100-4,500 lm | DALI-2 scene control | Program-based |
Illustrative prototype figures — final MOQ and lead times are confirmed per order. Track adapters matched to your market's base standard on request.
Representative lines from this category. The item-level catalog with photometric files and certification mapping is prepared per inquiry.
12-30 W · 3-wire or adapter track · 15/24/36° lenses (typical)
Order mode: Trial 100-200 pcs · bulk · request pricing

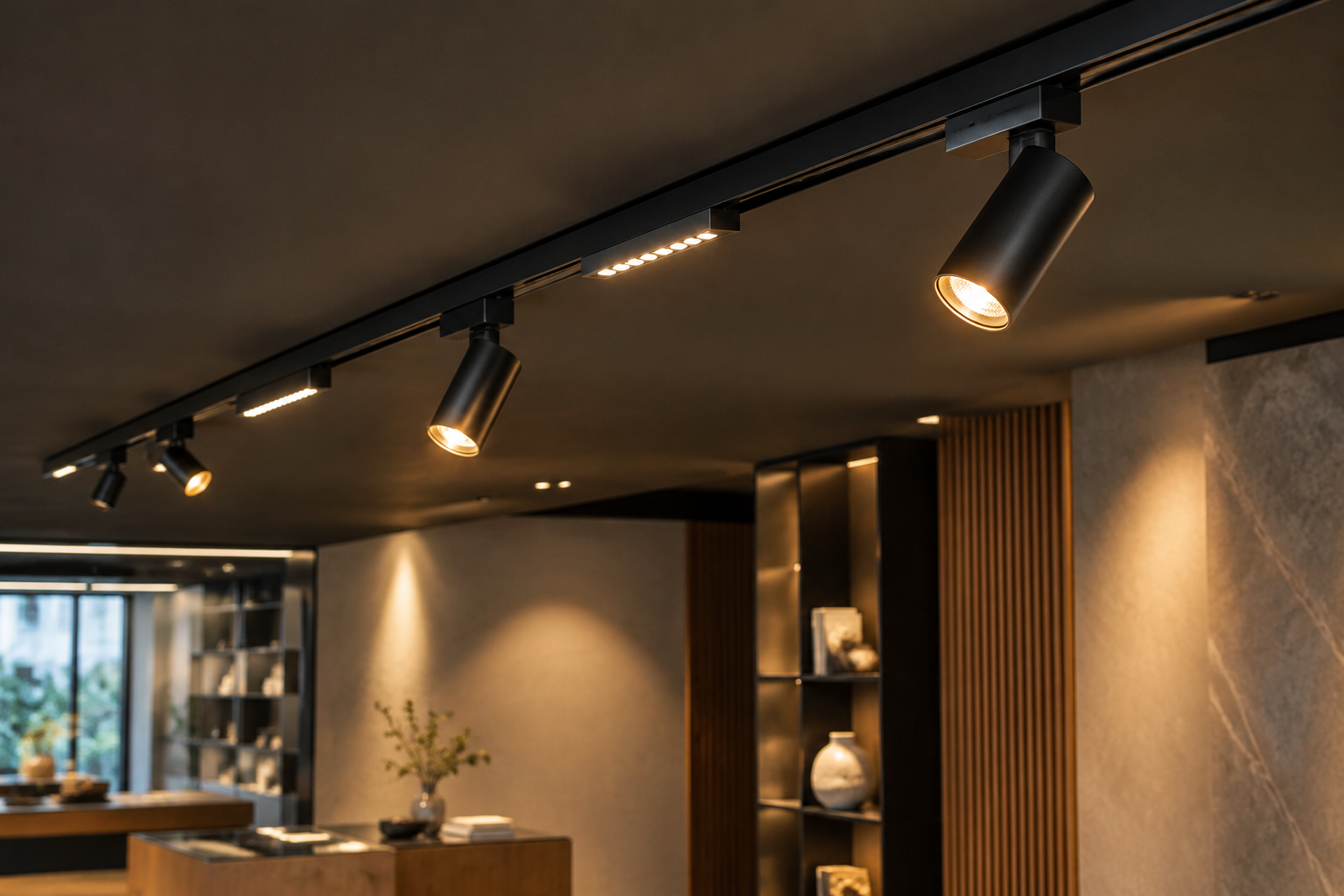

10-24 W · 48 V slim rail · tool-free snap-in (typical)
Order mode: Bulk 500 pcs+ · request pricing

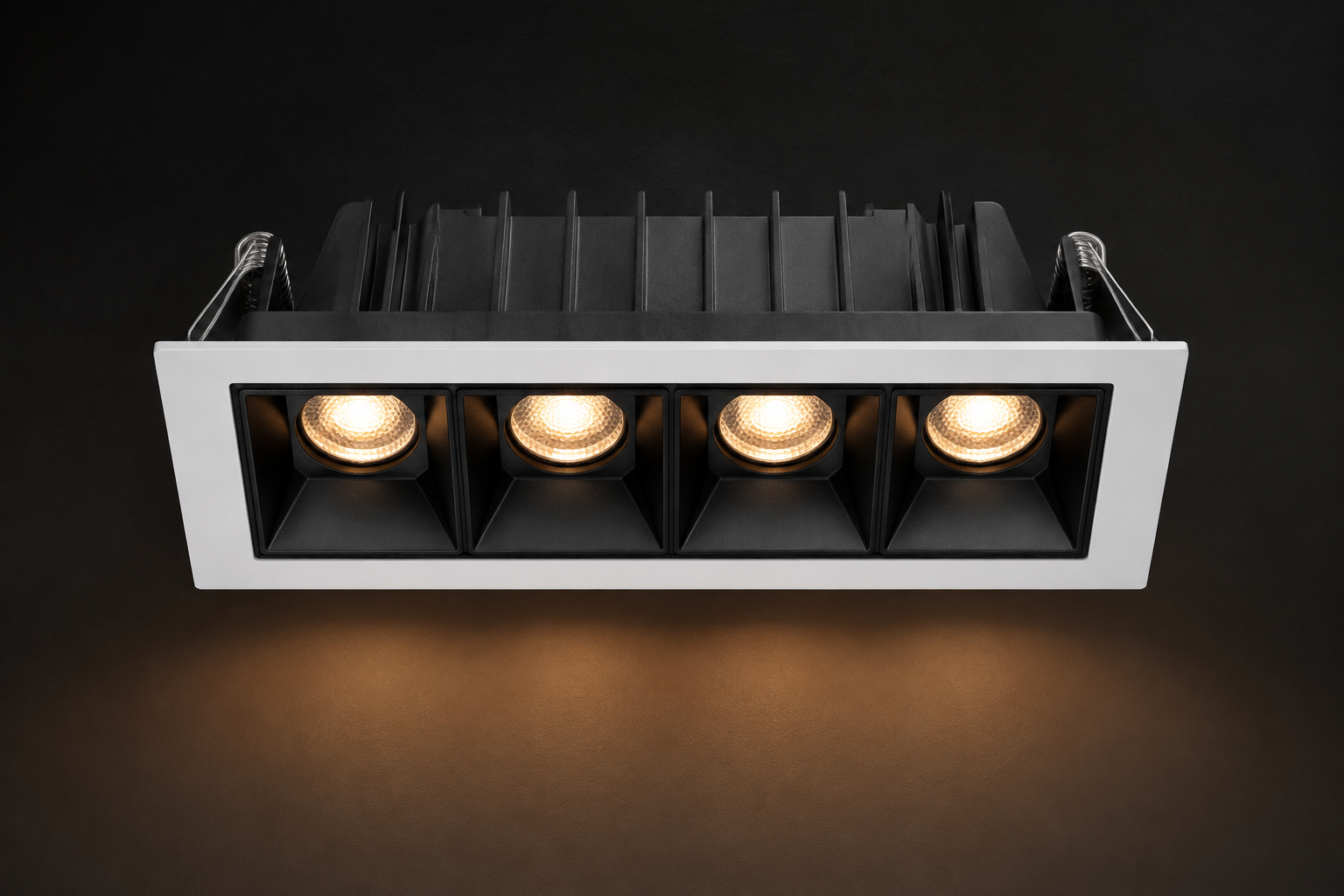

4-cell recessed · UGR<13 · flush ceiling trim (typical)
Order mode: Bulk 500 pcs+ · request pricing
Illustrative prototype products and figures — confirmed against your market and certification needs at inquiry.
Two decisions decide the system: the rail standard, then the optics tier. Most programs land in one of these three.
| Specification tier | Best for | Recommended line |
|---|---|---|
| Volume retail tier — standard 3-wire rail, CRI90+ spots | Chain stores and showrooms replacing or extending a common rail standard | T3 single-circuit track heads |
| Flexible premium tier — tool-free modules, UGR<16 optics | Flagship retail, offices and media ceilings reconfigured between seasons | MGX 48V magnetic systems with GR grille and wall-washer modules |
| Multi-scene tier — independent circuits or per-head addressing | Galleries and offices switching scenes on one rail | T4 three-circuit track, or DA DALI track sets for addressable control |
Tier examples follow the systems on this page — the rail standard is confirmed with a sample before tooling or bulk.
Track heads are judged 3 meters below, pointed at product. What separates a system that sells from a system that gets returned is beam quality, batch color consistency and a rail that actually matches the market. We lock all three at sample stage.
Certificates are held by certified partner factories and verified per order with number and official database link. North-American UL/ETL/DLC are quoted case-by-case. Detail in the certification center.
Voltage, flexibility, cost and ceiling type compared — the decision tree specifiers actually follow.
How 48V magnetic rails work, what snaps onto them, and where the format outperforms classic track.
The glare number behind UGR<16 grille optics — what it measures and when tenders demand it.
Layout, photometrics and a system quotation within 24 hours of your plan.
